Product Overview

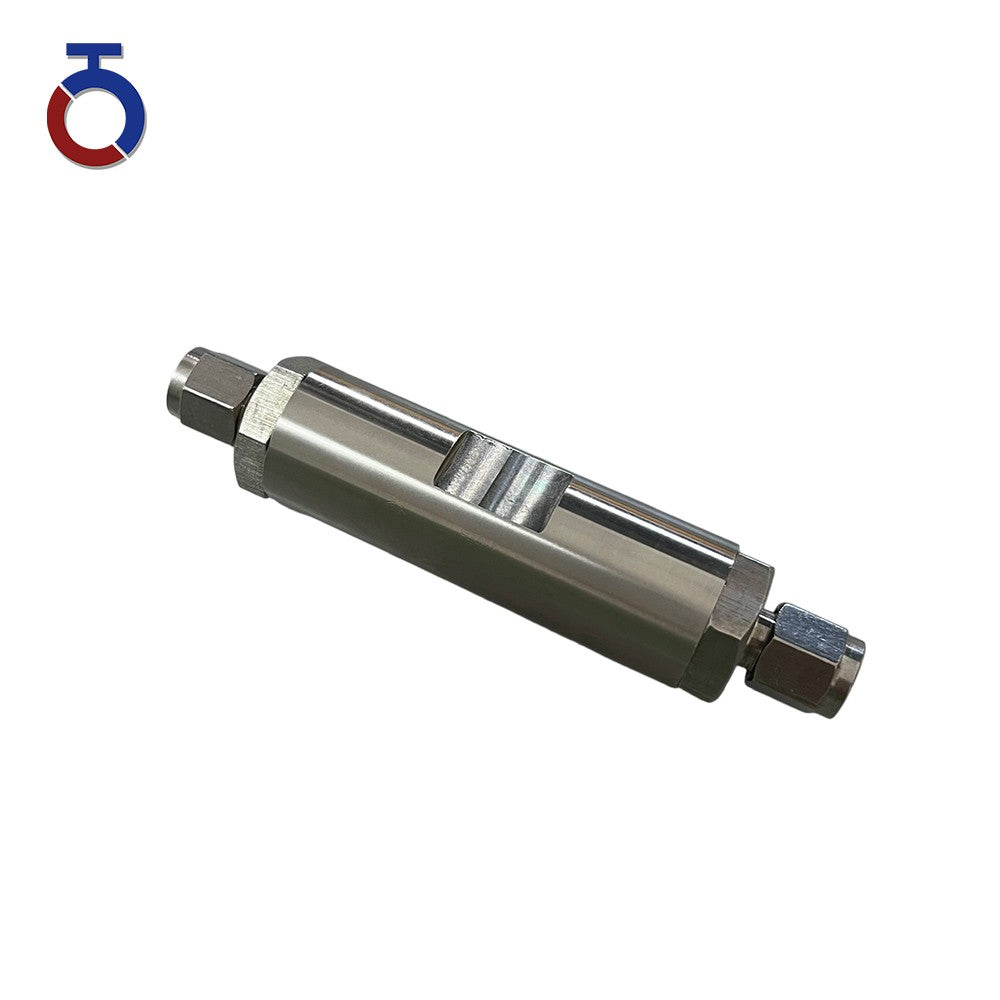

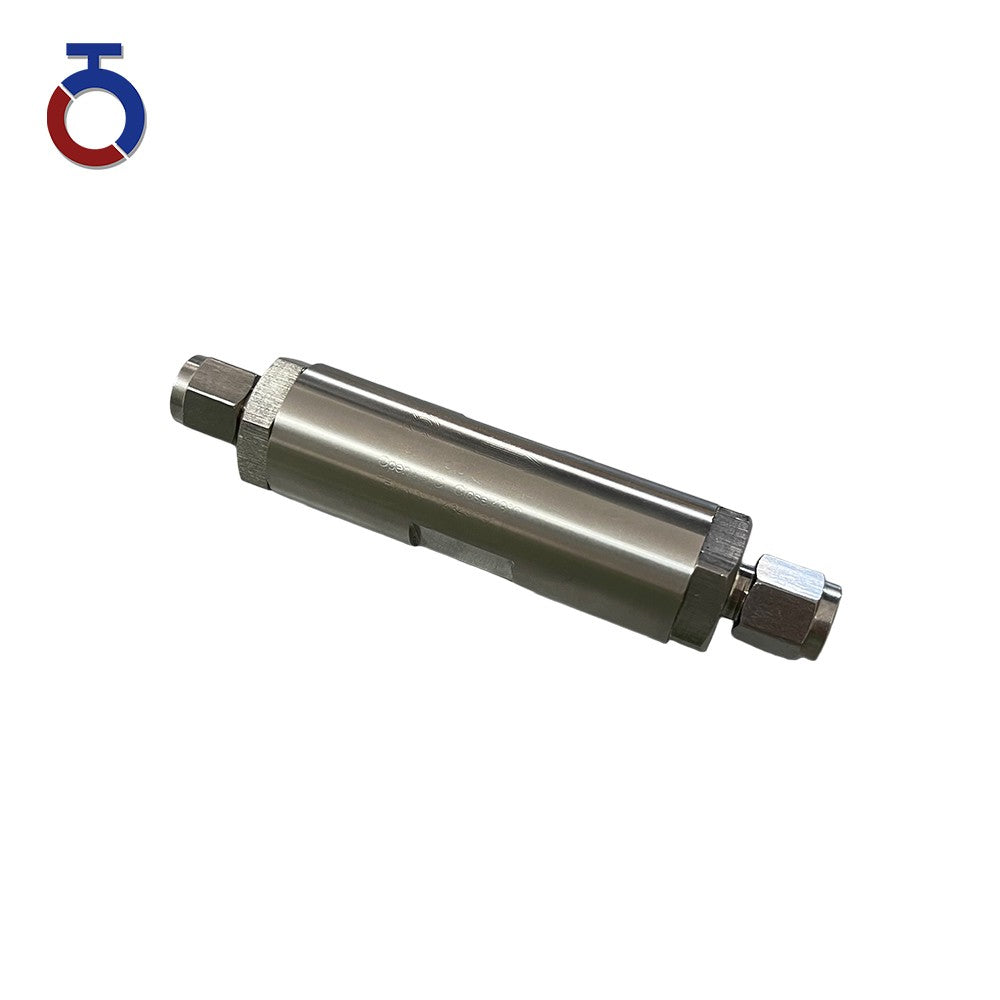

The Winning FP14 In-Line Thermal Control Valve (Safety Shutoff Valve) is an all-stainless-steel, self-operating thermal control valve designed for precise temperature-based flow regulation in industrial tracing and process systems.

Application

• Replacement for conventional steam traps on winterization tracing, instrument tracing, and condensate return system freeze protection
• Tracing for processes under 150°F (66°C)
• Sample cooler protection — automatically shuts off flow to prevent equipment damage when cooling fluid is lost or temperature limits are exceeded
• Process analyzers and similar instrumentation requiring temperature-safe sample fluids
• Any application requiring in-line flow control based on temperature

Operation

• Responds only to temperature — modulates flow to maintain constant condensate discharge temperature
• Wide open at start-up for rapid venting and initial heat-up
• Self-draining after shutdown to eliminate freeze damage
• For temperature-sensitive instruments: reduced tracing temperature simplifies operations and eliminates overheating
• For other heat transfer fluids: maintains constant discharge temperature for accurate process control and improved efficiency

Key Features & Benefits

• Eliminates live steam losses
• Downstream actuator for greater sensitivity
• Reliable shutoff: ram-type plug provides tight shutoff
• Compact, low mass for fast response
• Operating temperatures unaffected by variable inlet pressures
• Corrosion resistant: all stainless steel construction (316SS)
• Operates in any orientation

Specifications

• Material: 316 Stainless Steel
• Standard Temperature Options: 95°F, 100°F, 105°F, 120°F, 130°F, 140°F
• Manufacturer: Beijing Winning Thermo Control Equipment Co., Ltd.
